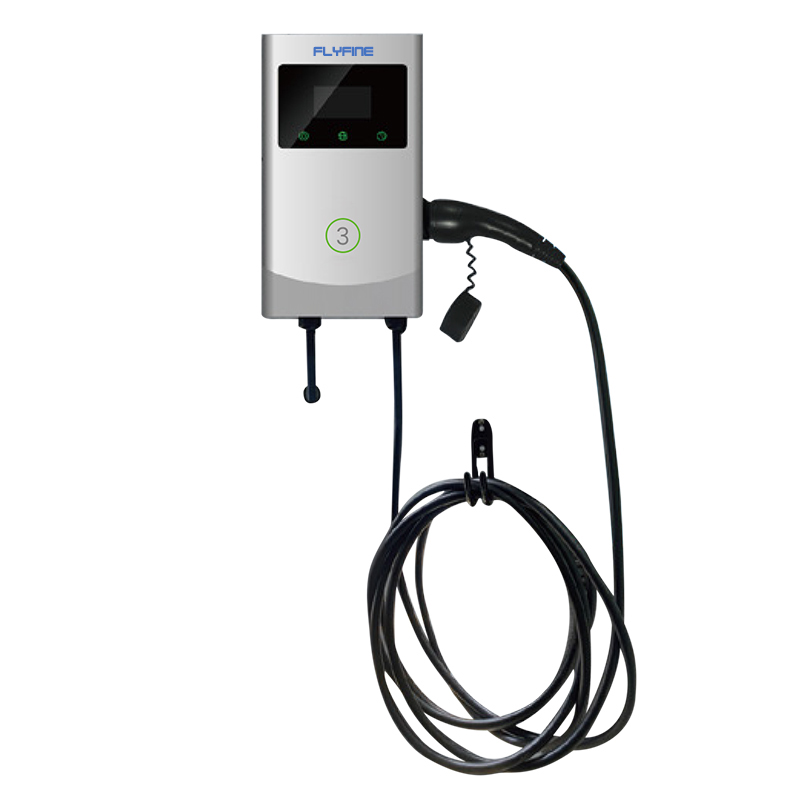

● Type 2 cable/Type 2 socket
● IP54 waterproof
● PWM Signal At CP End
● Start Modes: RFlD/Plug&Play/APP
● Leakage Detection: Type A or Type A + DC6mA
● Meet the Latest Rosh Standard Requirements
| PERFORMANCE SPECIFICATIONS | |
| Model | FF-AC3221EUO-META0-XJ |
| Standard | EU |
| Power | 22kW |
| Input/Output Voltage | 230 VAC+20%, Single; 400 VAC+20%,three-phase |
| Voltage Measurement Accuracy | ±1% |
| Output Current | 32A |
| Current Measurement Accuracy | <0.5A |
| Leakage Detection | Type A or Type A + DC6mA |
| PWM Signal At CP End | Amplitude:±12V,Frequency=1kHz |
| PWM Duty Cycle | 53.34%±0.5% @1kHz |
| Power Consumption Of The Control Board | <5W |
| Noise | ≤40dB |
| Cooling Method | Natural cooling |
| Control Logic | GB/T 18487.1-2015 |
| Test Specifications | GB/T 34657.1-2015 |
| Operating Temperature | -30℃C~+55°C |
| Storage Temperature | -40℃~+85°C |
| Working Altitude | 2000m |
| Relative Humidity | 5%RH ~ 95%RH |
| ROSH | Meets the requirements of the latest ROSH standards |
| Dimensions Of The Main Unit | 261×486 x140mm |
| Ingress Protection | IP54 |
