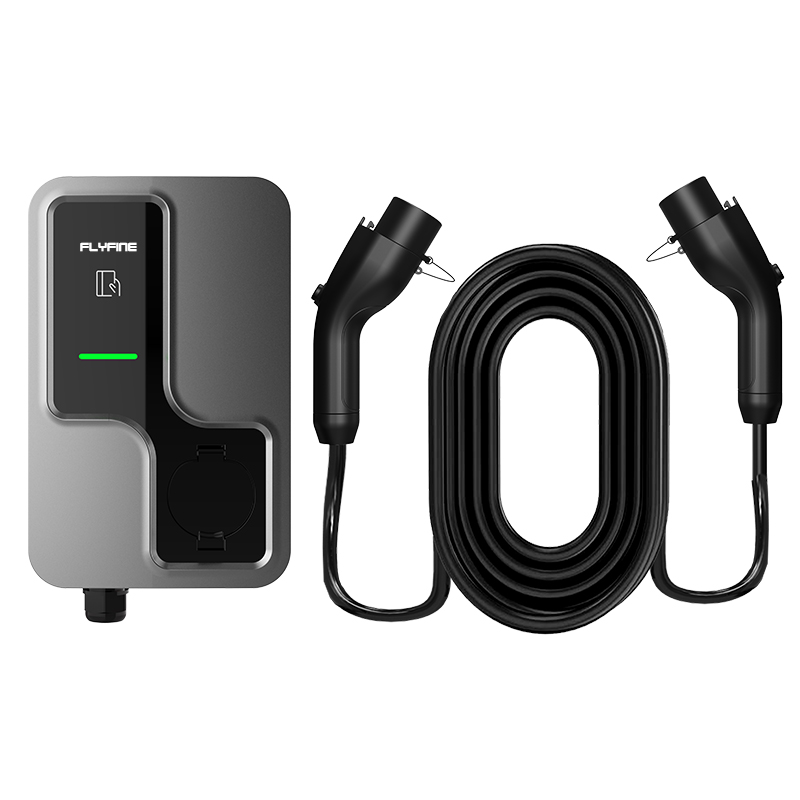

● Type 2 cable/Type 2 socket
● Start Modes: RFlD/Plug&Play/APP
● Charging Connector IP54,Host IP66/IK10
● Multi communications(WiFi/4G/BLE)
● OCPP communication protocol with CMS
● From 0-500Km cost around 3.5 hours (22KW)
● 30mA Type A +6mA DC residual current protection
| PERFORMANCE SPECIFICATIONS | ||
| Model | FF-EU332EA-SV | |
| Standard | EU | |
| Power | 7kW | 11/22kW |
| Input/Output Voltage | 230VAC/230VAC | 400VAC/400VAC |
| Input Frequency | 50/60Hz | |
| Output Current | 32A | 16A/32A adjustable |
| Rated Residual Operating Current | AC30mA+DC6mA | |
| Over Temperature Protection | ≥ 95°C | |
| Charging start Mode | Plug and play,RFID,APP | |
| Operating Temperature | -30℃~+50°C | |
| Storage Temperature | -40℃~+85°C | |
| Relative Humidity | 5%~95% No condensation | |
| Life Time Of Connector | >10000 times | |
| Mean Time Between Failure | MTBF≥30000h | |
| APP/Communication | Support/WIFI,BLE,4G Optional | |
| Cable Length | 5 meters(Customizable) | |
| Weight | 1.8kG (cable not included) | |
| Color | white/Black/Dark Grey | |
| Power Plug | EU(Standard) | |
| Connector Type | IEC 62196-2 Type 2 | |
| Maximum Altitude | 2000m | |
| Charging Plug/socket | Seperate from the Host | |
| Degree Of Protection | Charging Connector IP54,Host IP66/IK10 | |
| Host Dimension | 311*192*80mm | |
| Wiring method | Enter and out at the bottom | |
| Certification Standard | ENIEC61851-1:2019.EC61851-1:2017,IEC61851-21-2:2018 | |
